NeoPODz Pro (12v)

NeoPODz Pro (12V RGB Flow LED Pods)

Yunique LED's NeoPODz Pro is the 12V version of our NeoPODz platform. Powered by the UCS2903 chip, NeoPODz Pro deliver vibrant RGB flow with the durability and reliability that 12V builds demand. Perfect for full panel taillights, DRLs, and any 12V addressable lighting project. RGBW capability is in the works. For now, embrace the vibrant RGB flow that sets NeoPODz Pro apart.

Key Features

• UCS2903 chipset for unwavering performance and durability

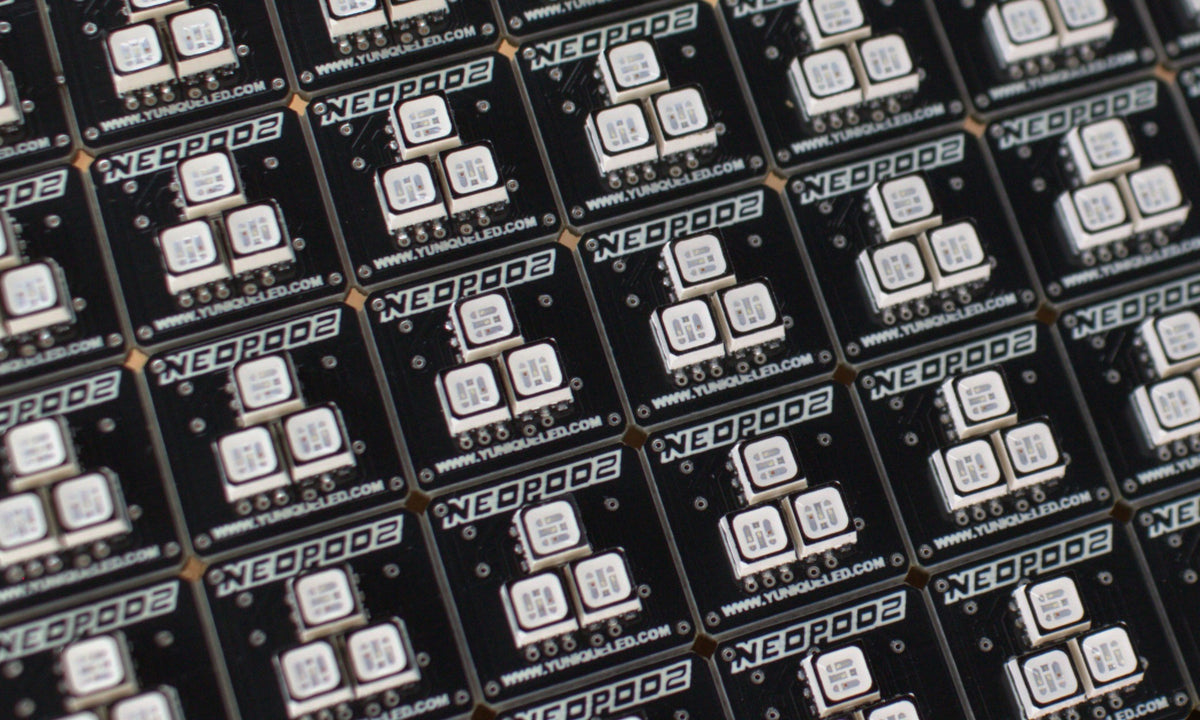

• 50 pods per panel with 3 LEDs per pod (150 LEDs total)
• 13.6mm x 13.6mm compact size for tight installs
• Input and output pads for daisy chaining or standalone use
• 12V input voltage for reliable automotive use
• GRB color order
• Made in the USA by Yunique LED
• Backed by our 1 year limited warranty

Technical Specifications

• Voltage: 12V
• Color Order: GRB
• LEDs per Panel: 150 (3 per pod)
• Pod Size: 13.6mm x 13.6mm
• Chipset: UCS2903

Best Uses

• Full panel custom tail light builds
• DRL and running light runs
• 12V addressable RGB projects
• Accent lighting
• Custom show panels

Compatibility

• UCS2903 compatible addressable controllers
• SP series controllers supporting UCS2903 protocol
• Custom 12V addressable driver setups

What's Included

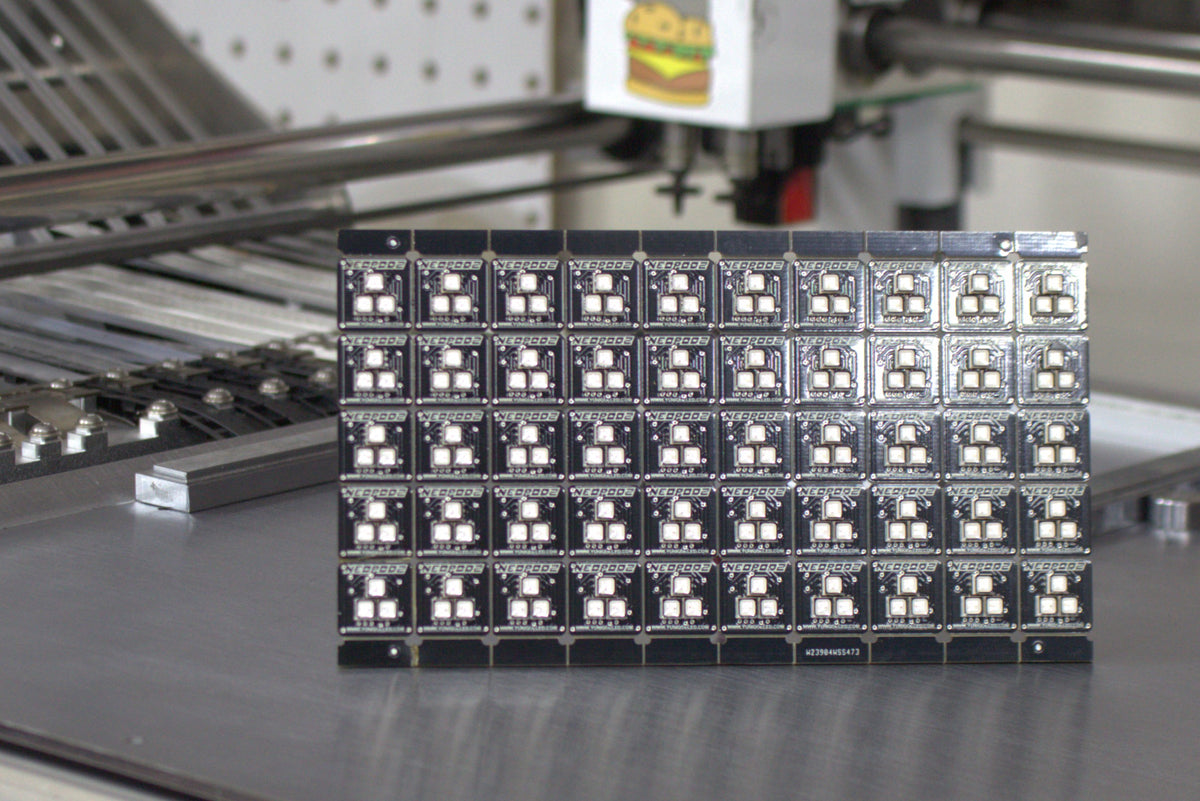

• 1 NeoPODz Pro panel with 50 individual pods
• Input and output pads for daisy chaining

Warranty and Support

Backed by Yunique LED's 1 year limited warranty against manufacturing defects.

Pair With Related Products

• NeoPODz SK6812 (5V RGBW). 5V RGBW Flow version with BlueGhozt compatibility
• 350Z RGB Flow Taillight LED Boards (UCS2903). Companion drop in board
• BlueGhozt Lite Smart LED Controller (Ghozt Lighting)

Need Help?

Not sure how to wire these or which controller you need? Email info@yuniqueled.com.
